Mô tả

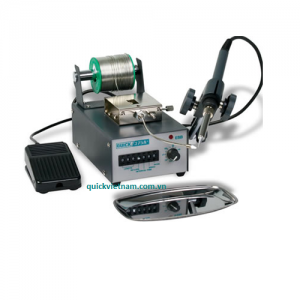

Features
- Ceramic heating element has a long life span. 24V DC heating results in safe and reliable.
2. Temperature controlled by RTD sensor, rapid heating.
3. The temperature is precise and stable.
4. Stable motor, automatic feeding, sliding switch design.
5. More functions available and adjustable, such as feeding speed, feeding volume, interval time, and backing time etc.
6. Two operation modes: auto and manual.
7. Soldering direction may be changed as needed.
8. It is suitable for soldering connectors, adapters and soldering under other special conditions.
Specifications
| Motor | Step Motor |
| Soldering iron power consumption | 60W |
| Temperature range | 200℃-480℃ |
| Temperature stability | ±2℃(stationary air, no load) |
| Feeding speed | About 2.7mm/s-27mm/s(36°/s-360°/s) |
| Feeding interval time | 0-2.7s |
| Feeding volume | 0-150mm |
| Backing time | 0-0.9s (about 0-25mm, regular speed: 360°/s) |
| Feeding mode | Auto (1-9)/Manual (0) |
| Diameter of wire usable | 0.6, 0.8, 1.0, 1.2mm |
| Solder Wire Usable | ≤1kg (roll) |
| Dimensions | 200(L)*138(W)*140(H) mm |
| Weight | About 2.6kg |
Replaceable tips
