Features

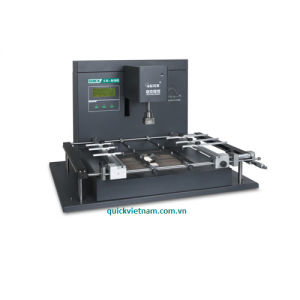

1. No nozzle is required for this infrared BGA rework station. In the process of reballing, no air flow is needed. So the success rate of reballing is higher.
2. The dark-infrared open type top heater, as well as the infrared-preheating reduce the vertical temperature difference between the BGA surface and the solder joint. Accordingly, the BGA soldering and de-soldering time is shortened.
3. The closed-loop control on the surface temperature of BGA is conducted through the non-contacted infrared temperature sensor. So the accurate temperature and the uniform heat distribution are obtained.
4. The PCB stand of the infrared BGA rework station can be moved towards four directions. The installation is quite easy.
5. The IRSoft operation interface can control the operation authorization and conduct the profile analysis.
Specifications
| Power | 2400W (Max.) |
| Power of Bottom Preheating | 1600W (Infrared ceramic heating plate) |
| Power of Top Heater | 720W (Infrared heating tube, 2-8µm wave length, size: 60×60mm) |
| Bottom Preheating Area | 260×260mm |
| Max. PCB Size | 420×500mm |
| Max. BGA Size | 60×60mm |
| Communication | Standard RS-232C (Can be connected with PC) |
| Infrared Temperature Sensor | 0-300℃ (Temperature range) |
| Dimension | 800×580×520 (mm) |
| Weight | 36kg |
